Wrap-around case packer WPS 280 R

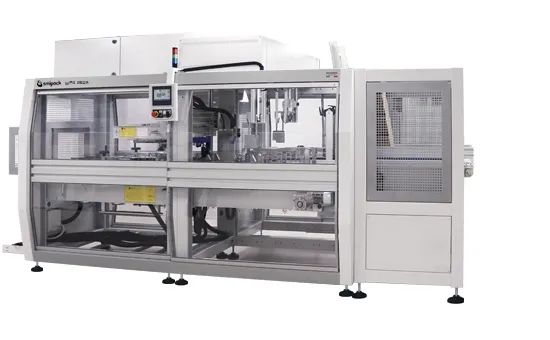

Case packer WPS 280 R

The WPS 280 R is a fully automatic wrap-around case packer, specially designed to integrate into continuous packaging lines. It handles a wide range of products with industrial-level efficiency and consistent packaging quality.
Key Benefits

• Compact design, ideal for limited production space
• High-end technology components, ensuring high-speed output
• Compatible with three types of cardboard: micro-flute, corrugated, and kraft
• High performance: up to 25 packs per minute


Main Technical Specifications

• Power supply: 220–240 V / 380–415 V, 50/60 Hz, 9,900 W
• Air pressure: 6 bar – approx. 17 Nl per pack
• Production speed: up to 20 packs/min (up to 25 ppm depending on configuration)
• Product height: 75 to 350 mm
• Adjustable working height: 960–1,105 mm
• Accepted cardboard: flat size from 300 × 500 mm to 750 × 1,300 mm; thickness 1.8–3.0 mm or kraft 0.54–0.60 mm
• Machine dimensions: 4,790 × 2,415 × 2,190–2,335 mm; weight: 1,875 kg


Built-In Features & Options

• Automated carton handling
  -    Motorized magazine (300–400 sheets) with integrated conveyor
  -    Photocell sensors for carton stock monitoring
  -    Oscillating arm with suction cups and servomotor for precise pickup
• Case forming and packing
  -    Polyzene guides for frictionless product positioning
  -    Case forming unit driven by 4 servomotors, automatic adjustments
  -    U-shaped loading with dual pusher, controlled by 4 servo-driven axes
  -    Internal flaps closed using pneumatic actuators and fixed folders
• Automated gluing system
  -    Crosswise hot-melt glue applicator with 4 points, encoder and inverter controlled
• Safety and control
  -    Sliding doors with automatic soft-close system
  -    Photocell sensors for product presence and speed control


Industrial Applications
Ideal for a wide range of sectors:
Food (fruit, vegetables, dairy, meat), paper industry, pharmaceuticals, cosmetics, electronics, logistics, mechanical industries, and more.

Why Refacom Chooses the WPS 280 R
With the WPS 280 R, Refacom offers a compact, reliable, and high-performance solution that meets the demands of modern industrial lines, with high throughput and multi-format compatibility.

Need a Custom Solution?
Contact Refacom for:

• A tailored study and quote based on your formats and production needs
• A technical audit to integrate the WPS 280 R into your line
• An on-site demonstration or showroom test
