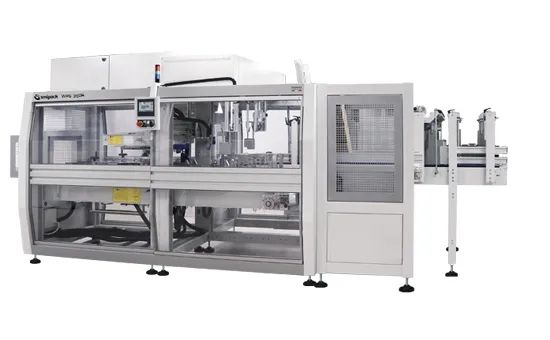

Wrap-around case packer WPS 350 R

Case packer WPS 350 R

The WPS 350 R is a fully automatic wrap-around case packer, ideal for continuous production lines. It delivers industrial-grade packaging for a wide variety of products, while maintaining a compact footprint for easy integration into space-limited environments.
Key Benefits

  • Compact design, perfect for space-constrained installations
  • High-end components for high output and optimal reliability
  • Compatible with three types of cardboard: micro-flute, corrugated, and kraft
  • High-performance output: up to 25 packs per minute

Main Technical Specifications

  • Power supply: 220–240 V / 380–415 V (3-phase), 50/60 Hz, 9,900 W
  • Air pressure: 6 bar (approx. 17 Nl/pack)
  • Speed: up to 20–25 packs per minute (depending on configuration)
  • Product height: 75 to 350 mm
  • Adjustable working height: 960–1,105 mm
  • Carton dimensions: from 300 × 500 mm to 750 × 1,300 mm; thickness 1.8–3.0 mm or kraft 0.54–0.60 mm
  • Machine dimensions: 4,790 × 2,415 × 2,190–2,335 mm; weight: approx. 1,875 kg

Integrated Features & Options

  • Motorized carton magazine (300–400 blanks) with conveyor
  • Photocell sensors for product detection and stock monitoring
  • Servo-controlled suction arm for precise carton pick-up
  • Servo-driven forming units (4 motors) with polyzene guides
  • U-shaped product loading with double pusher on servo axes
  • Automated flap closing via pneumatic actuators
  • Hot-melt gluing system with 4 application points, encoder/inverter-controlled
  • Safety system: sliding doors with soft close and photocell controls

Industrial Applications
The WPS 350 R is suitable for a wide range of industries:

  • Food & Beverage (fruits, vegetables, meat, dairy)
  • Pharmaceutical, cosmetics, electronics, logistics, mechanical, paper, and more

Why Choose Refacom for the WPS 350 R?
Refacom delivers a complete wrap-around packaging solution: compact, reliable, high-performing, and compatible with multiple carton formats — tailored for the demands of modern industrial lines.

Looking for a custom solution?
Get in touch with Refacom for:

  • A tailored study and offer based on your packaging formats and production volumes
  • A technical assessment for seamless integration into your line
  • A live demo or showroom presentation
