Wrap-around case packer WPS 600 R

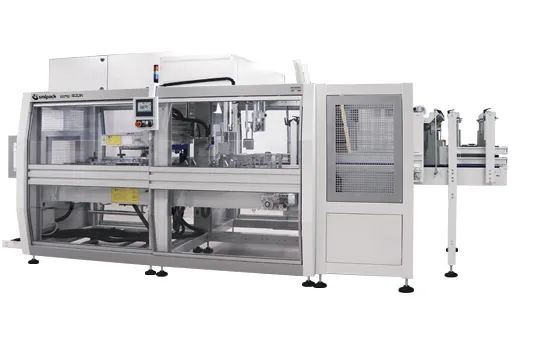

Case packer WPS 600 R
High-Performance, Compact and Shelf-Ready Packaging Solution
The SMIPACK WPS 600 R automatic case packer is the ideal solution for manufacturers seeking a reliable, efficient, and versatile wrap-around packaging machine. Designed to automatically form and seal trays, open/closed boxes, display boxes, and shelf-ready packs, it accommodates a wide variety of products across multiple industries.
Thanks to its compact frame and optimized design, it fits seamlessly into space-constrained production environments. Its advanced technology enables high-speed operation—up to 25 packs per minute—while delivering consistent, top-quality packaging results.
Key Technical Specifications
- Machine type: Inline automatic wrap-around case packer
- Production speed: Up to 25 packs/min (depending on product and carton type)
- Machine dimensions: 5590 × 2415 mm – Height: 2190 to 2335 mm
- Net weight: 2115 k
- Power supply: 220–240 / 380–415 V, 50/60 Hz, 3PH + PE or 3PH + N + PE
- Installed power: 11,100 W
- Air consumption: 6 bar – 17 Nl/pack
Advanced Features for Tailored Packaging
- Motorized carton magazine (capacity: 300–400 units)
- Automatic carton picking arm with suction cups and servo control
- Integrated photocell sensors: product presence, speed variation, multi-lane accumulation
- Carton size compatibility:
- Dimensions: 300 × 500 mm to 750 × 1300 mm
- Thickness: 1.8 to 3 mm (corrugated) or 0.54 to 0.60 mm (kraft) - Automatic product grouping and orientation at infeed
- Dual servo-driven pusher with 2-axis Cartesian movement
- Electronic forming unit with automatic depth adjustment
- Precise guiding system with pneumatic side plates and polyzene guides
- Flap closure via pneumatic actuators and fixed folding systems
Industry Applications
The WPS series is ideal for high-throughput packaging across multiple sectors:
Food & Agriculture
- Fruits and vegetables
- Dairy products
- Fish, meat, poultry
- Pasta, bakery, cheese
Industrial & Commercial
- Household and cosmetic products
- Toys, IT, textiles
- Pharmaceutical items
- Electrical equipment, confectionery, stationery
Construction, Mechanics & Craft
- Mechanical parts, industrial oils
- Wood, plastics, logistics
- Contract packaging, shelving, custom solutions
Why Choose the SMIPACK WPS 600 R?
- High output & maximum efficiency
- Handles various carton types and sizes (kraft, corrugated, micro-flute)
- Automatic format change for fast transitions
- Advanced safety systems with sliding protective doors
- Compliant with the highest industrial standards
- Easy maintenance and ergonomic design for operator comfort
