Smipack shrink wrapper with film feed – XP 650 ASX

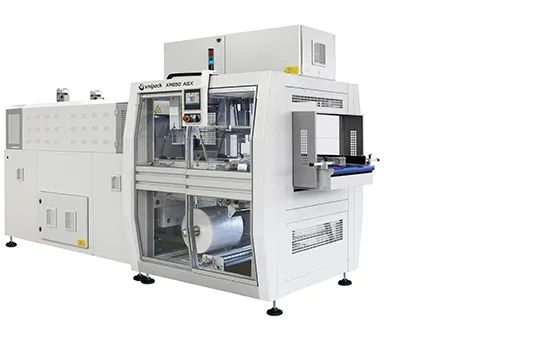

Smipack shrink wrapper – XP 650 ASX

The XP 650 ASX is a high-performance automatic overlap shrink wrapper with in-line product feed, designed for high-speed wrap-around packaging. Ideal for bottles, cans, trays, jars, and various industrial formats, it ensures precise and efficient bundling
Key Advantages

• High output: up to 25 packs per minute
• Multi-product adaptability: glass/PET bottles, cans, tins, trays, jars…
• Flexible packaging: film only, film + pad, or film + tray
• Space-saving footprint: dual-chamber tunnel and integrated conveyors


Main Technical Specifications

• Power supply: 220–240 / 380–415 V, 50/60 Hz – power consumption: 35,450 W
• Air pressure: 6 bar – approx. 9 Nl/pack
• Max product height: 380 mm – working height: 1,045–1,205 mm
• LDPE reel size: up to 650 × Ø 400 mm
• Machine dimensions: 4,575 × 1,575 mm – height: 2,150–2,310 mm
• Net weight: approx. 1,470 kg


Advanced Features

• Motorized film unwind with encoder/inverter adjustment
• Film launch system via brushless servomotor, with optional printed film centering
• Multi-lane conveyor with adjustable speed via inverter
• Product grouping & accumulation controlled by photocell-equipped conveyors
• Operator safety: sliding doors with automatic slowdown


Industry Applications
Perfect for: beverages, canned goods, oils, dairy, cosmetics, household products, pharma, logistics, mechanical parts, and more.

Why Choose Refacom & XP 650 ASX?

• A robust, versatile shrink wrapping solution
• High-speed operation with consistent quality
• Wide compatibility with various formats and materials
• Optimized layout: compact machine, integrated flow, easy maintenance


Ready for a tailored project?
Get in touch with Refacom for:

• A custom analysis based on your formats and production volume
• A technical audit on site for seamless integration
• A live demo (on site or in showroom)


Visit the Smipack website.
