Smipack shrink wrapper with film feed – XP 650 ARX

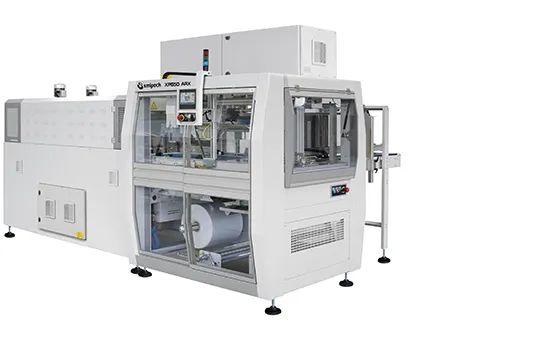

Smipack shrink wrapper – XP 650 ARX

The XP 650 ARX is an automatic shrink wrapper from the XP series, featuring a 90° infeed conveyor, designed for high-speed wrap-around packaging. It’s ideal for bundling bottles, cans, trays, pots, and other industrial product formats.
Key Benefits

High output: up to 25 packs per minute
Wide product compatibility: glass/PET bottles, cans, tins, trays, pots, etc.
Flexible packaging: film only, film + pad, or film + tray
Space-saving design: dual-chamber tunnel and 90° infeed for compact integration

Core Technical Features

Power supply: 220–240 / 380–415 V, 50/60 Hz – installed power 35,200 W
Air pressure: 6 bar – approx. 9 to 10 Nl/pack
Max product height: 380 mm; Working height: 1,045–1,205 mm
LDPE reel: up to 650 × Ø 400 mm
Machine dimensions: approx. 4,310–4,575 mm × 1,575–2,830 mm; Height: 2,150–2,310 mm
Net weight: approx. 1,470–1,540 kg

Advanced Features

Motorized film unwind with encoder/inverter control
90° film launch using a brushless servomotor, with optional printed film centering
Multi-lane conveyors with variable speed, controlled by inverter
Smart photocells for product detection, separation, accumulation, tunnel exit control
Operator safety: sliding doors with automatic deceleration

Industrial Applications
Perfectly suited for demanding industries:

Beverages, canned goods, oils, food & dairy products
Cosmetics, home care, pharmaceuticals
Electronics, mechanics, logistics, co-packers…

Why Choose Refacom with the XP 650 ARX?

Robust and versatile wrap-around packaging solution
High-speed performance and consistent quality
Broad compatibility with various formats and materials
Optimized installation: compact footprint, integrated flow, easy maintenance

Need a tailored project?
Contact Refacom for:

A custom study & quote for your formats and speeds
A technical audit for seamless integration
A live demo at your site or our showroom
