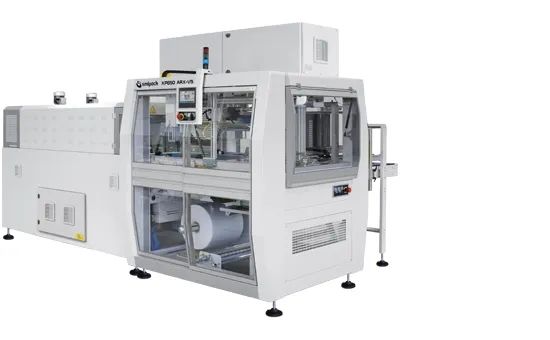

Smipack shrink wrapper with film feed – XP 650 ARX-VS

Smipack shrink wrapper – XP 650 ARX-VS

The XP 650 ARX VS is a high-performance automatic shrink wrapper with a 90° infeed conveyor, offering an advanced version of the XP 650 ARX. Built for demanding industrial lines, it reaches speeds of up to 30 packs per minute, delivering up to 20% higher productivity.
Key Strengths

• High output: Up to 30 packs/min thanks to dual-axis motorized pusher
• Versatile packaging: Glass/PET bottles, cans, jars, trays, containers
• Flexible wrapping: Film only, film + pad, or film + tray
• Optional printed film centering for optimal visual presentation


Main Technical Features

• Power supply: 220–240 / 380–415 V, 50/60 Hz – Installed power: 36,000 W
• Air pressure: 6 bar – approx. 9.5 Nl per pack
• Max product height: 230 mm
• LDPE film reel: up to 650 × Ø 400 mm
• Machine size: 4,310 × 2,830 mm – Height: 2,150–2,310 mm
• Net weight: approx. 1,540 kg


Advanced Features

• Dual-axis servo-driven pusher for increased speed (25 to 30 ppm)
• Compact footprint with integrated 90° infeed and double shrink tunnel
• Smart photocells for product detection, flow control, and collision prevention
• Enhanced safety with smooth-sliding doors and deceleration system
• User-friendly adjustments via inverters and adjustable guides


Recommended Applications
Perfect for sectors such as:

• Beverages, canned goods, edible oils, food processing
• Cosmetics, household products, pharmaceuticals
• Electronics, mechanical parts, logistics, co-packing


Why Choose Refacom & the XP 650 ARX VS?

• +20% productivity compared to the XP 650 ARX
• Expanded versatility with dual-axis pushing and centered printed film
• Space-saving design thanks to compact layout and dual tunnel
• Industrial-grade reliability with premium components and safety systems


Start Your Project with Refacom
Contact Refacom for:

• A custom study & quote tailored to your product lines
• A technical audit to ensure flawless integration
• A live demo at your facility or in our showroom

Visit the Smipack website.
