Smipack shrink wrapper with film feed – XP 650 ALX

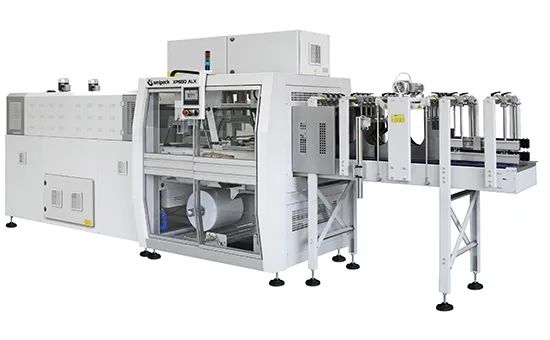

Smipack shrink wrapper – XP 650 ALX

The XP 650 ALX is a compact monoblock automatic overlap shrink wrapper with in line product feed, designed for high-speed wrap-around shrink packaging. Ideal for bottles, cans, trays, jars, and industrial containers.
Key Benefits

• Multi-product compatibility: glass/PET bottles, cans, boxes, trays, jars
• Flexible wrapping: film only, film + pad, or film + tray
• High speed: up to 25 packs per minute
• Space-efficient design: compact integrated monoblock unit


Main Technical Specs

• Power: 220–240 / 380–415 V, 50/60 Hz – 36,000 W installed
• Air pressure: 6 bar – 9 Nl/pack
• Max product height: 380 mm; Working height: 1,045–1,205 mm
• LDPE film reel size: up to 650 × Ø 400 mm
• Dimensions: 6,065 × 1,575 mm; Height: 2,100–2,260 mm
• Net weight: approx. 1,760 kg


Advanced Features

• Double-chamber tunnel
• Photocells for detection, accumulation, separation with multi-lane conveyors
• Powered film unwind with servo control, film cutting, FLXMOD® control, touchscreen, PLC
• Safety: sliding doors with deceleration, CE compliant, 20 programmable cycles


Recommended Industries
Perfect for:

• Beverages, canned goods, edible oils, food & dairy products
• Cosmetics, household products, pharmaceuticals, logistics
• Electronics, mechanical parts, co-packers


Why Choose Refacom & XP 650 ALX?

• Versatile wrap-around solution
• Productivity: up to 25 packs/min in a compact monoblock format
• Industrial reliability, ergonomic FLXMOD® control, advanced safety


Ready to Upgrade?
Contact Refacom for:

• A custom feasibility study tailored to your production needs
• A technical audit for seamless line integration
• A live demo at our showroom or your site
