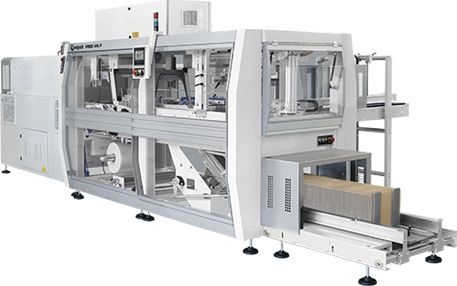

Smipack shrink wrapper with film feed – XP 650 ARX-P

Smipack shrink wrapper – XP 650 ARX-P

The XP 650 ARX P is an automatic overlap shrink wrapper with a 90° infeed conveyor and integrated pad inserter. Designed for high-performance packaging with film and/or cardboard support, it’s suitable for bottles, boxes, trays, jars, and more
Key Advantages

•  Automated pad insertion: stores up to 300 pads, synchronised entry
• Versatile packaging: film only or with tray/pad support
• High-speed operation: up to 25 packs per minute, depending on product
• Compact monoblock design: includes 90° conveyor and dual-chamber tunnel


Main Technical Specs

• Power: 220–415 V, 50/60 Hz – approx. 35,800 W installed
• Air pressure: 6 bar – approx. 10 Nl/pack
• Max product height: 380 mm; Working height: 1,045–1,205 mm
• LDPE reel: up to 650 × Ø 400 mm
• Machine size: approx. 5,925 × 2,730 mm; Height: 2,100–2,260 mm
• Net weight: approx. 2,020 kg


Advanced Features

• Pad inserter system: automatic, vertical, precise alignment
• Motorised film unwind: brushless servo, cold film cutting
• Multiple photocells: detect product, flow control, sort and buffer
• Operator safety: sliding doors with deceleration, anti-collision sensors


 Recommended Industries
Ideal for food & beverage, cosmetics, pharmaceuticals, logistics, mechanical, and more

Why Choose Refacom & XP 650 ARX P?

• Complete packaging solution: film + pad support tailored to your needs
• High automation with flexible operation
• Space-saving: compact monoblock layout
• Reliable and safe: premium components, CE standards, FLXMOD® interface


Ready to upgrade your line?

• A custom feasibility study
• A technical audit for perfect integration
• A live demo at our showroom or your site
