Smipack shrink wrapper with film feed – XP 650 ALX-P

Smipack shrink wrapper – XP 650 ALX-P

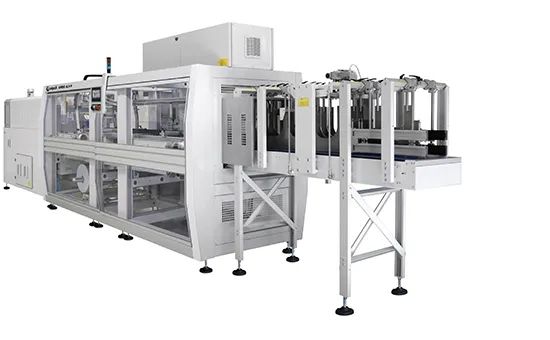

The XP 650 ALX P is a compact monoblock automatic overlap shrink wrapper with inline conveyor and integrated pad inserter. Designed for wrap-around shrink packaging with or without cardboard support, it handles bottles, boxes, trays, jars, and cans.
Key Benefits

• Automatic pad insertion – synchronized and compact
• Versatile packaging – film only or film + pad/tray
• High speed – up to 25 packs/minute
• Space-saving monoblock design with dual-chamber tunnel


Main Technical Specs

• Power: 220–415 V, 50/60 Hz – ~36,000 W installed
• Air pressure: 6 bar – approx. 9 Nl/pack
• Max product height: 380 mm; Working height: 1,045–1,205 mm
• LDPE reel size: up to 650 × Ø 400 mm
• Dimensions: ~6,065 × 1,575 mm; Height: 2,100–2,260 mm
• Net weight: approx. 1,760 kg


Advanced Features

• Vertical pad inserter – automatic, precise alignment
• Motorized film unwind with servo control and cold cut
• Multiple photocells for detecting, buffering, separating
• Operator safety – sliding doors with deceleration and anti-collision


Ideal For
Ideal for the food & beverage, cosmetics, pharmaceutical, logistics, mechanical industries, and co-packers

Why Choose Refacom & the XP 650 ALX P?

• Complete packaging solution – film with pad support
• High automation level with flexible operation
• Compact monoblock design for easy integration
• Industrial reliability – premium components, CE certified


Ready to upgrade?
Contact Refacom for:

• A custom feasibility study tailored to your needs
• A technical audit for seamless integration
• A live demo at our site or showroom
