Smipack shrink wrapper with film feed – XP 650 ARX-T

Smipack shrink wrapper – XP 650 ARX-T

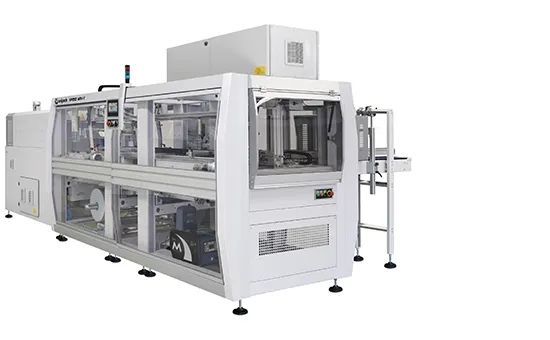

The XP 650 ARX T is a compact monoblock automatic shrink wrapper featuring a 90° infeed conveyor and integrated tray insertion. It handles wrap-around film packaging with tray, offering superior product stability via glass fiber tunnel bars.
Key Benefits

• Smooth 90° feed for efficient line integration 
• Automated tray insertion: adjustable formats (150×60 mm to 500×320 mm), synchronized 
• High output: up to 25 packs/min, depending on format 
• Robust tunnel with glass-fiber bars for exceptional product stability 


Main Technical Specs

• Power: 220–415 V, 50/60 Hz – approx. 36,000 W
• Air pressure: 6 bar – approx. 9–14 Nl/pack 
• Max product height: 380 mm; Working height: 1,045–1,205 mm
• Machine size: approx. 8,465 × 1,575 mm; Height: 2,150–2,310 mm; Net weight: ~2,860 kg 


 Advanced Features

• Multi-lane conveyors with variable speed for adaptable feed 
• Photocells: detection, buffering, flow control, collision prevention 
• Safety system: sliding doors with deceleration, CE and Industry 4.0 compliant 


 Ideal For
Suitable for food & beverage, canned goods, oils, cosmetics, pharmaceuticals, logistics, electronics, mechanical, and co-packers 

Why Choose Refacom & the XP 650 ARX T?

• Complete packaging: film + tray with automated insertion
• Maximized product stability with reinforced conveyor and tunnel
• Compact, industrial-grade design
• Consistent high performance: 25 ppm, premium components


Ready to elevate?
Contact Refacom for:

• A custom feasibility study tailored to your formats and outputs
•  A technical audit for seamless integration
• A live demo at your facility or showroom

Visit the Smipack website.
